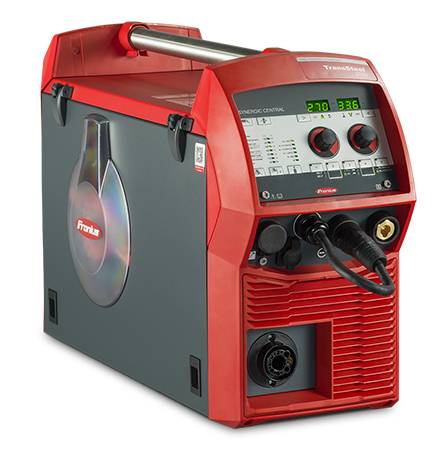

Transsteel 2700C Package Synergic Multi-Process with Tig Torch

Contractor Pricing Available - Email us to Apply

49,0410,0037 Fronius Mig/Tig/Stick Package (Multi-Process) 220 Volt

270 Amp Multi-Proces Synergic Welding Machine single or  3 phase  200 – 230 V / 380 – 460 V

Synergic Welding” allows single parameter operation. Using the settings for your gas, wire diameter, material and thickness, target either amperage, voltage, or wirefeed speed and the TransSteel will adjust all other parameters to achieve the best results.

Weld up to 1.2mm (.045") (AMAZING PORTABILITY ALLOWING YOU TO TIG / STICK / OR MIG WELD ON THE JOB SITE OR IN THE SHOP

Lock 8 can supply light weight extension cords so you can bring machine over 300 feet away from wall receptacle. The machine will not be effected in performance by the long length of cable.

• Weighing only 67 lbs, the duty cycle allows you to weld up to 270 amps. On single phase you can weld at 145 amps 100% duty cycle. 180 amps 40% duty cycle.
• At 3 phase the duty cycle is 170 amps 100% and 270 amps 40% duty cycle.
• Holds up to 8" and 12 inch spools of mig wire. 5lb - 10lb - 30lb
• Weld aluminum without a spool gun,  or push pull mig gun.

2700C Unique Features

• MIG: Four roll drive eliminates bird's nesting!
• MIG: No spool gun needed for Aluminum!
• MIG: Synergic welding - Set 1 parameter & weld!
• TIG: TIG Pulsing allows for greater puddle control!
• STICK: Hot Start allows for touble-free ignition!

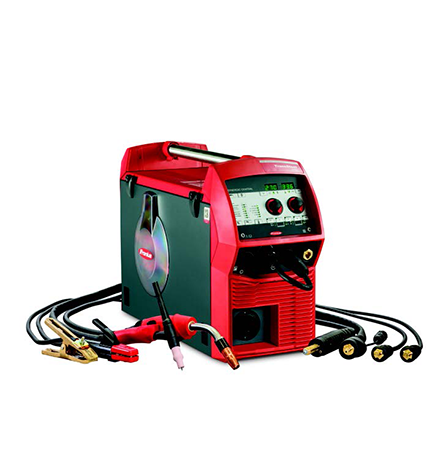

Include in the Package:

• TransSteel 2700 C 4R/FSC MV nc 4,075,224,800 Qty 1
• MIG torch MTG 2500S /FSC/3.5m/11.48ft/45 4,035,980  Qty 1
• TIG Torch Body - TTB 220P G ML/70°/L65 44,0350,4409 Qty 1
• TIG Hose Pack- THP 220d ML/UD/Le/13.12ft 4,051,412 Qty 1
• Electrode Cable 25mm2 43,0004,0478  Qty 1
• Ground Cable 43,0004,0160 Qty 1
• Feeder Roll 0.9-1.0 mm (.035"-.040") 44,0001,1406 Qty 4
• Basic Kit Universal 0.9 mm 44,0350,1105 Qty 1
• Contact Tip 0.9mm (.035") (10 pack of tips) 42,0001,4462,10 Qty 1
• Gas Adapter 42,0001,3541 Qty 2
•

NOTE: Machine comes from the factory without the input power cable, plug, or flowmeter.

OPTIONS AVAILABLE

• LOCK 8 Can install any type of power cord that the customer wishes to use as long as it conforms to local electrcial codes. We can help with that information
• LOCK 8 Can install the proper plug so it is ready to use when the machine is delivered to you.
• LOCK 8 Can do follow up CALIBRATIONS after the  initial one from the factory expires.
• Flowmeters are available at lock 8 and we have them listed under the replacement part TAB.
• Welding gas available for all process that will suit residential or commercial needs. Lock 8 Supplies Gas Delivery to Commercial Accounts only.
