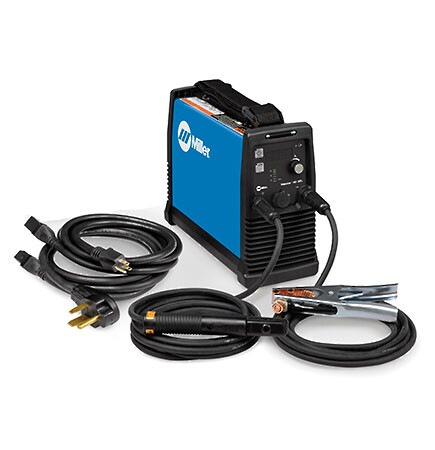

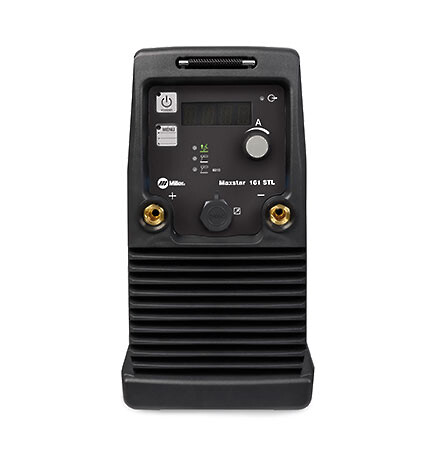

Miller Maxstar 161 STL DC Stick/Tig Lift Arc 120/240 Volt

SKU: 161ST

Miller Maxstar 161STL 120/220 Volt Welder

CALL OR EMAIL FOR DELIVERY TIME - STOCK AT SUPPLIER IS NOT PREDICTABLE AT THIS TIME

• Small Lightweight welder (13 lbs) with Digital Meters
• Lift Arc Tig with gas solenoid inside the machine
• 6 Pin Remote Connection for either a foot pedal or hand control (Adapter available to go from 6 pin to the Miller 14 pin connection

Duty Cycle in Tig Mode 120 Volts:

• 14.61 Amp Draw | 90 amps 100 % Duty Cycle
• 22.6 Amp Draw | 130 amps 30% Duty Cycle

Duty Cycle in Tig Mode 220 Volts:

• 9.35 Amp Draw | 110 amps 100% Duty Cycle
• 15.05 Amp Draw | 160 amps 20% Duty Cycle

FOR FULL DETAILS VIEW THE BROCHURE UNDER THE SPEC SHEET TAB

Process:

• Stick
• Lift Arc Tig

Details of what comes with the Package:

• Maxstar 161 power source
• 6.5 ft. (2 m) 120-volt and 240-volt power cords
• Stick electrode holder with 13 ft. (4 m) cable and 25 mm Dinse-style connector
• Work clamp with 10 ft. (3 m) cable and 25 mm Dinse-style connector
• One air-cooled TIG torch connector (195234)
• Handle/shoulder strap Quick-reference guid
