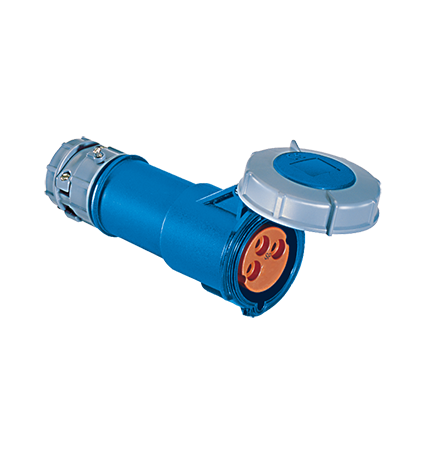

Mennekis IEC Connector 250 Volt Pin & Sleeve 1 Phase 20 Amp 2 Pole 3 Wire

Price: $118.80 (package of 1)
Based on unit price: $118.80

✔In Stock

Brand:

Mennekes

SKU #: 320C6W

Quantity

Add to cart

Description
Quantity discounts
Spec. Sheets

320C6W 250 VOLT CORD CONNECTOR SINGLE PHASE PLUS GROUND

2 POLE 3 WIRE PIN & SLEEVE CONNECTOR WATER TIGHT

MENNEKES IEC 60309-compatible in-line connectors are designed to ensure user safety while providing a simple yet reliable electrical contact. The durable connectors’ dead-front construction forms a barrier to protect users from current-carrying parts, and split brass solid sleeves establish a secure connection. Additional features include a high-temperature thermoplastic contact carriers and convenient, field-replaceable flip lid covers and locking rings. Connections are simple thanks to a clock face that represents the grounding contact position. And, MENNEKES color-codes the housings so users can easily identify the industry standard voltage configurations.

DETAILS:

Catalog #	ME 320C6W
Type of Device	Watertight Connector
Product Series	60309 Pin and Sleeve
Amperage	20A
Voltage	1 Phase 250VAC
# of Poles	2
# of Wires	3
Color	Blue
Standard HP Rating	2
Female Grounding Contact Position	6h
Sleeve Material	Brass
NEMA Rating	4X
IP Rating	67
Compliance	cULus to UL 1682 and UL 1686 to C2 Configurations and to CSA 22.2 No. 182.1 IEC 60309-1; IEC 60309-2
Current Interrupting	Certified at full-rated current and voltage
Temperature Rise	Max 30°C rise at full rated current after 50 overload cycles
Maximum Working Voltage	600 RMS
Dielectric Voltage	3000VAC maximum
UV Endurance	UV Stabilized Material
UL Endurance Testing-Electrical (at .75-.8 Power Factor)	5000 mated cycles at full-rated current/voltage
Environmental Operating Temperature	Maximum continuous: 70°C; Minimum: -40°C without impact
Crush Resistance	Units conditioned to -25°C for 6 hours and 250 lbs. of force applied for 1 minute
Impact Resistance	Units conditioned to -25°C for 6 hours and dropped 8 times from 30''
Replace Flip Lid Cover	ME 320RC6W

Quantity discounts

From	To	Price
2	4	$116.16
5 +	---	$113.52

Dimensions

Wiring Instructions
