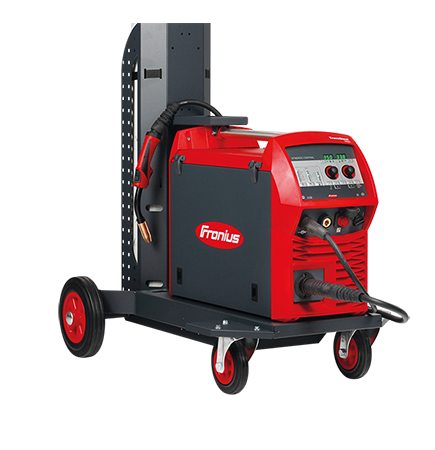

Fronius 3000C Multi-Process Synergic Pulse Welder 3 Phase Package with Mig Tig Stick Ready

SKU: 49,0410,0047

Contractor Pricing Available - Email us to Apply

LOCK 8 CAN OFFER THIS WELDER AS A NEW PURCHASE, A RENTAL ITEM, SALE OF A DEMO UNIT, OR SALE OF A MACHINE FROM OUR RENTAL FLEET.

LOCK 8 ALSO CAN SUPPLY ALL OF THE WELDING GASES FOR THIS MACHINE, WEATHER YOU ARE A HOME CONSUMER, OR A LARGE COMMERCIAL CONTRACTOR.

LOCK 8 IN HOUSE CAPABILITIES INCLUDE CALIBRATION CERTIFICATES, AS WELL AS THE EXPERTISE TO TROUBLE SHOOT AND REPAIR ALL TYPES OF WELDING MACHINES.

CALL TO SETUP A DEMO AT OUR FACILITY IN STONEY CREEK, HAMILTON

49,0410,0047 FRONIUS 3000C MULTI-PROCES WELDER 460-600 VOLT

WELD ALUMINUM OUT OF THE BOX

COMES COMPLETE WITH MIG GUN, TIG TORCH, CART, ELECTRODE WHIP AND GROUND

PULSE WELDING

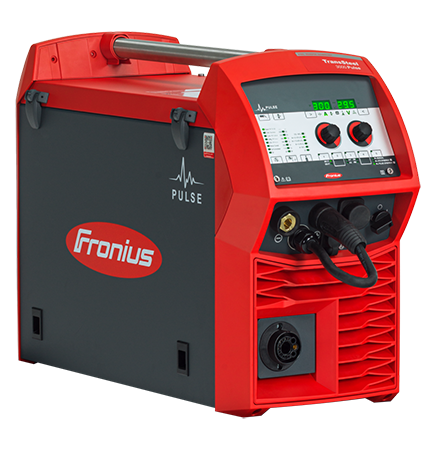

The new TransSteel 3000C Pulse marks the arrival of the pulsed arc in the TransSteel series. The setting is simply selected from the main menu and facilitates controlled welding in the intermediate arc range.

SPOT AND STICH

Spot mode enables you to place welding spots at regular intervals. As you have complete flexibility over the pause time between the intervals, spot welding is ideal for the tacking of
workpieces. Stitch welding not only produces a rippled seam appearance, the low level of heat input reduces any possible material distortion when working with light gage sheets.

SPECIAL 4 STEP MODE

The “Special 4-step mode” is particularly suitable for welding in the higher power range. In special 4-step mode, welding starts at a lower power, which makes the arc easier to stabilize.

SYNCROPULSE

The “SynchroPulse” option is recommended for the welding of aluminum alloys when a rippled seam appearance is required. This effect is achieved by modifying the welding power between two operating points.

TIG PULSE

TIG Pulse welding is primarily used for out-of-position welding or when welding especially thin materials. The pulse setting range is from 1 Hz to 990 Hz.

TIG TACK WELD

The weld pool is made to oscillate by means of pulse currents. This makes it easier to tack components together and reduces the tacking time.
The pulsed arc facilitates the process with very thin materials, since the temperatures are slightly lower in the phases with less current.

ARC IGNITION

The highly accurate touchdown ignition is on a par with high frequency ignition and contributes towards user-friendliness.

MIG: SYNCHROPULSE Stacked dime appearance using MIG!

MIG: No spool gun needed for Aluminum!
MIG: Synergic welding - Set 1 parameter & weld! TIG: TIG Pulsing allows for greater puddle control!
STICK: Hot Start allows for trouble-free ignition!

INCLUDED IN PACKAGE:

• TransSteel 3000C Pulse 4,075,227,800 1
• Feeder roll FSR U 1.2 mm 44,0001,1407 4
• BK Universal Ø1.2/G/W/5m 44,0350,1114 1
• Contact tip 1,2/M8x1,5/ø10x32 (10 pack) 42,0001,6467,10 1

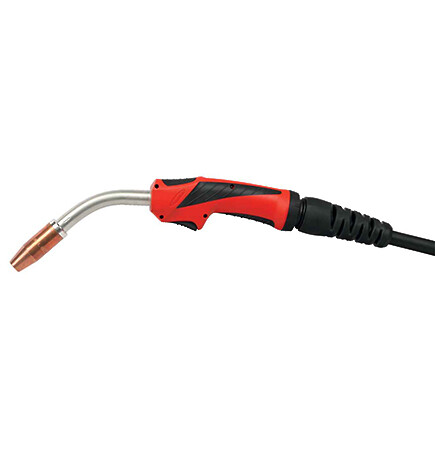

• MIG Torch - MTG400i US-Style FSC/EH/15'45° 4,036,422 1

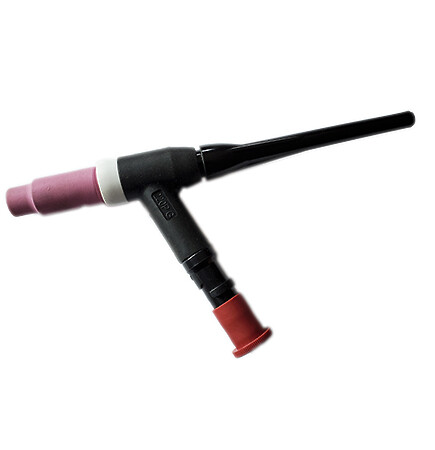

• TIG Torch Body - TTB 220P G ML/70°/L65 44,0350,4409 1
• TIG Hose Pack- THP 220d ML/UD/Le/13.12ft 4,051,412 1
• Electrode Cable 25mm2 43,0004,0478 1
• GroundCable 50mm² 4m EC/BY 43,0004,0161 1
• TU Car 4 Standard 4,077,014 1
• Gas Adapter 42,0001,3541 2
• Gas Regulator 42,0441,0005 1
• Mainstabilizer 3x600V/500V-460V 4,001,706 1
• Pre-Assembled Welding System 42,700,016
